The perfect combination of tranquil spaces

This design is perfectly in tune with modern families with cleverly crafted spaces with effortless flow. The Avondale is a two storey design offers private spaces for parents balanced with room for the kids, plus stunning open-plan living areas that draw the family together to enjoy time at home.

An oasis for the kids - Designed with a compact footprint, you’ll be surprised by the clever use of space. With three of the four generous bedrooms located upstairs with a activities, study and large family bathroom. This level is a zone that the kids will love and claim as their own, giving parents the perfect retreat on their own floor downstairs.

A tempting sanctuary - Parents will adore the grand master suite, positioned for convenience and ideal for a forever home, on the ground floor. The luxurious resort-style space includes a stunning ensuite with his-and-hers vanity, as well as two walk-in-robes – a magical retreat for unwinding in peace at the end of the day.

The ultimate in family living - Light-filled and airy, the stunning open-plan living space downstairs features a to-die-for gourmet kitchen looking out over the dining and living area and out to the alfresco cabana. The inclusion of a large theatre nestled to the side of the entry, masses of storage and extra powder room make this home one your family will love living in for years to come.

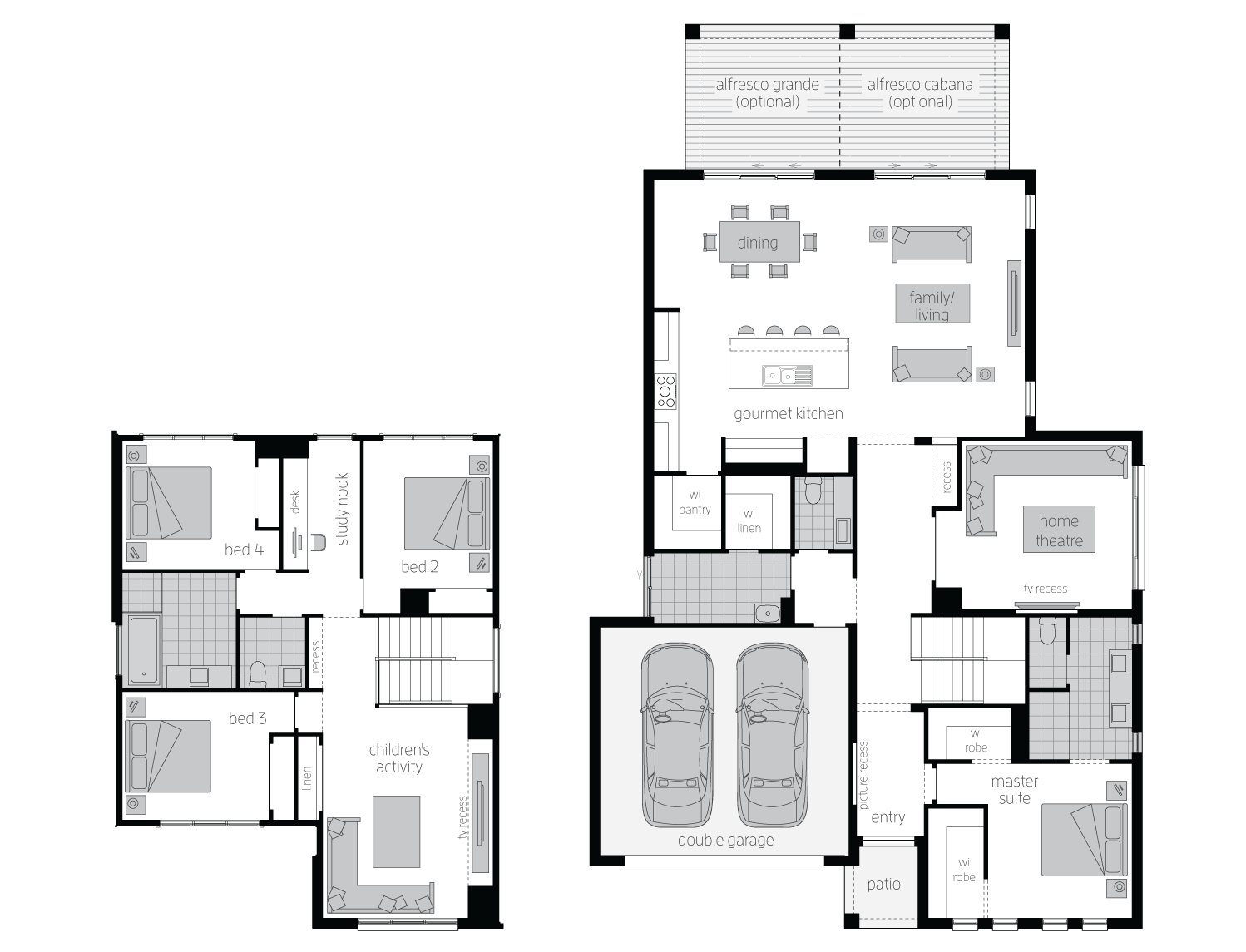

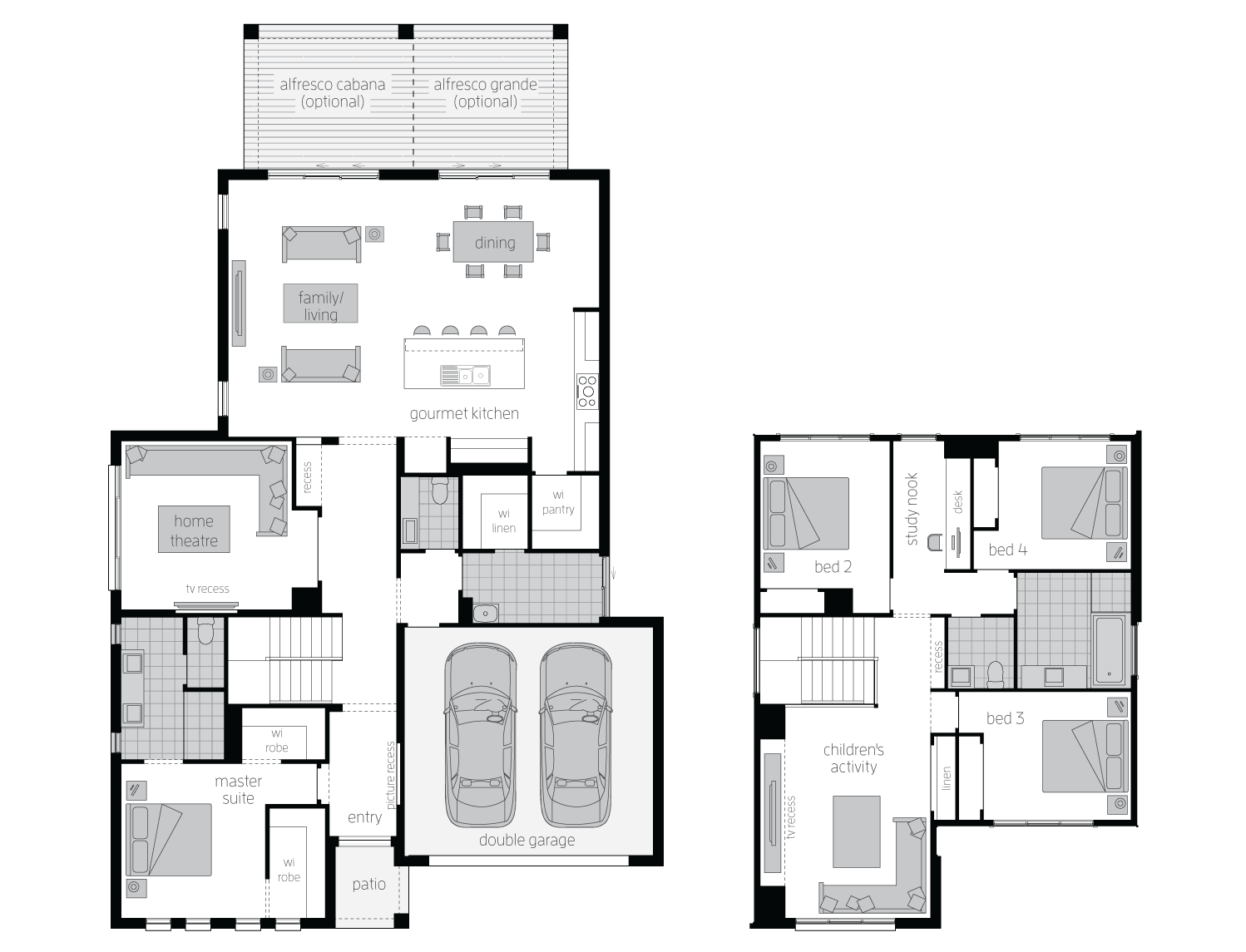

Floor Plans

Architectural New Home Designs - Avondale Floor Plan
Architectural New Home Designs - Avondale Floor Plan

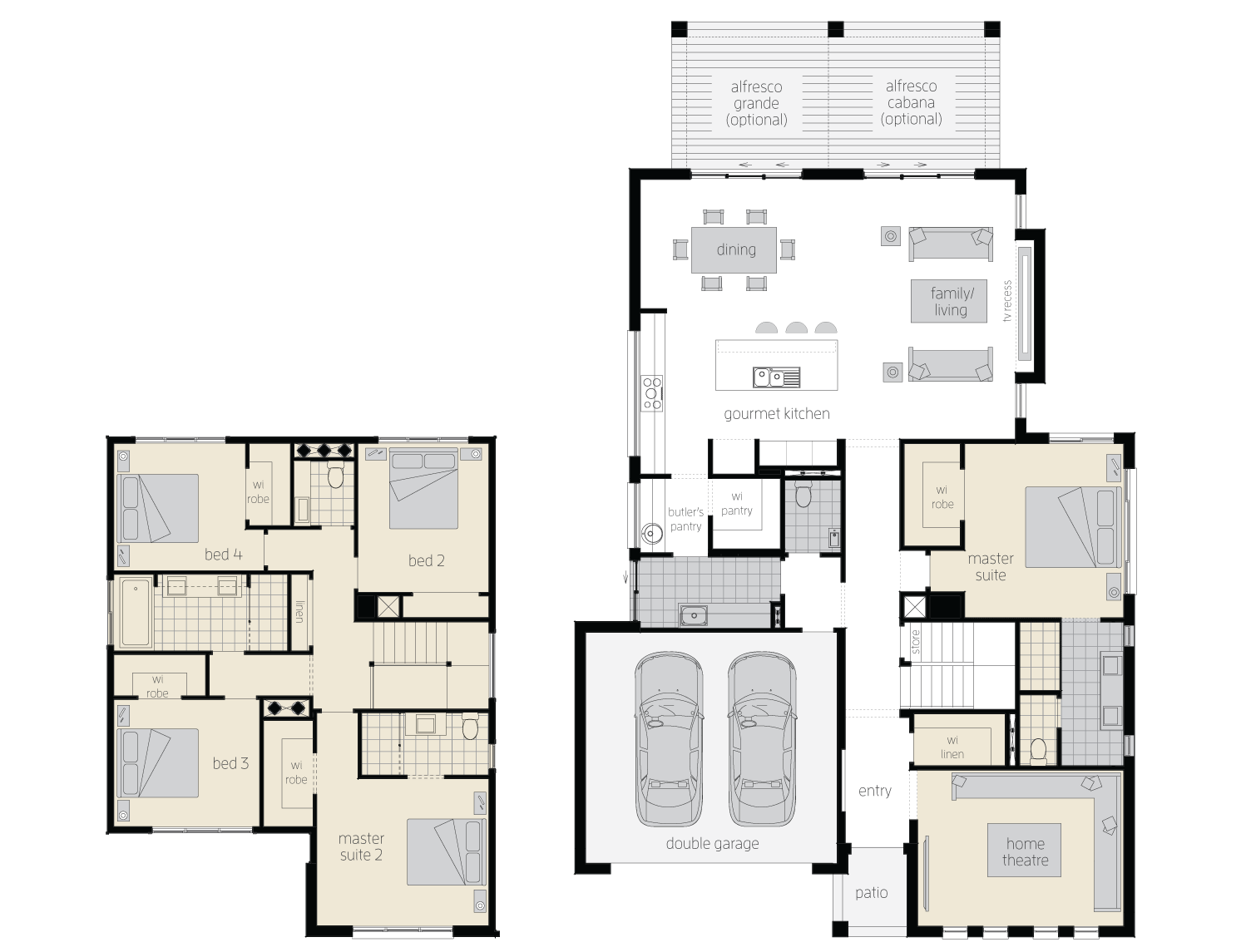

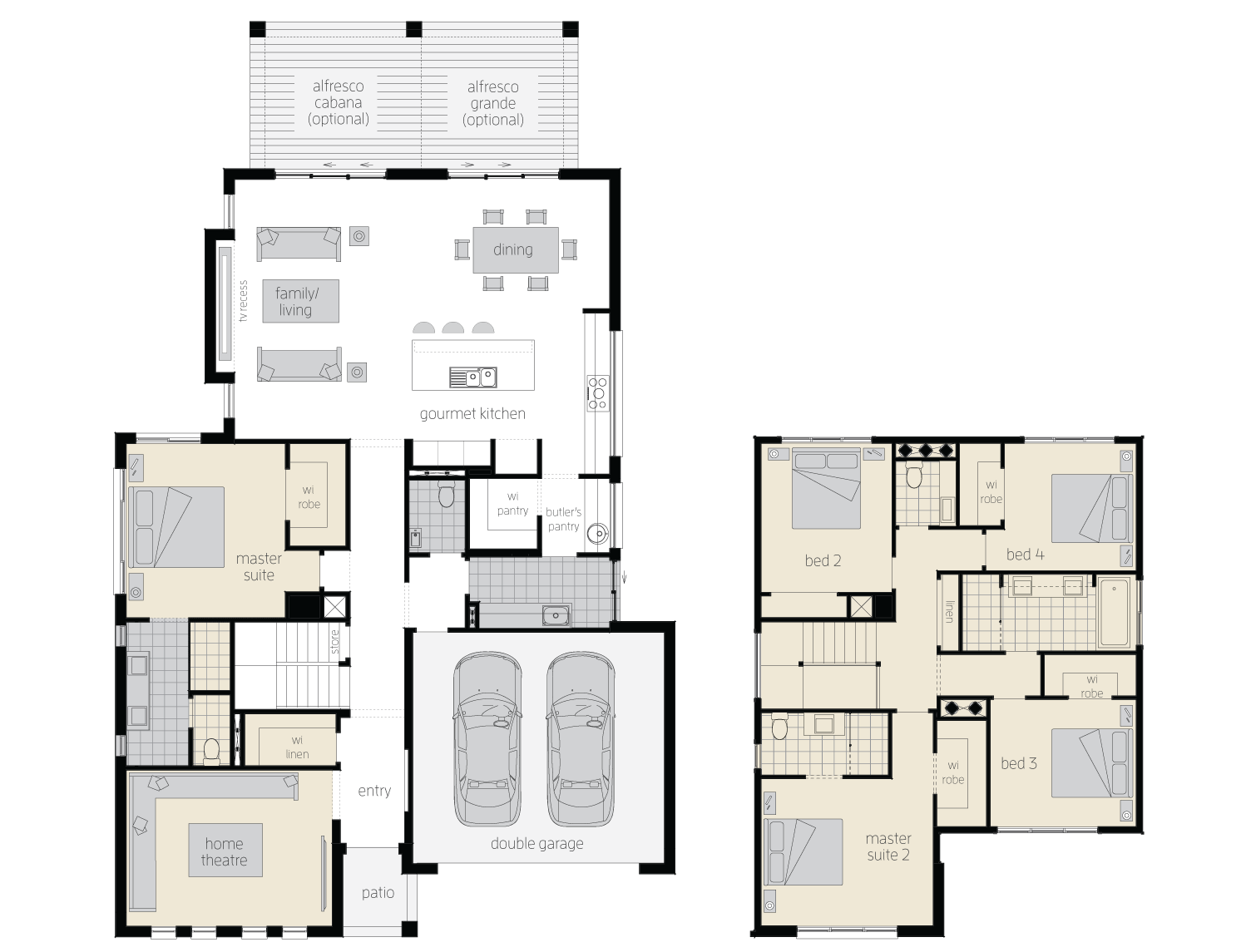

Design Options

4
 Bed
2.5
 Bath
2
 Car
2
 Storey
Block Width
18.00m
House Width
13.30m
House Length
18.30m

Room Dimensions

Family/Living
4.2 x 6.2 (m)
Dining
4.7 x 3.8 (m)
Master Suite
3.5 x 3.7 (m)
Bed 2
3.1 x 3.6 (m)
Bed 3
3.6 x 3.1 (m)
Bed 4
3.2 x 3.1 (m)
Home Theatre
4.1 x 4.2 (m)
Children’s Activity
4.1 x 5.1 (m)
Study Nook
1.9 x 3.1 (m)
Double Garage
6.0 x 5.5 (m)
Alfresco Cabana
4.1 x 3.2 (m)
Alfresco Grande
7.8 x 3.2 (m)

Additional Features

  • Home Theatre
  • Children's Activity
  • Study Nook
  • Powder Room
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included. The sizes of windows and external doors shown may vary from the standard plans due to the new 7 star BASIX equirements effective from October 1, 2023. Please talk to your Building and Design Consultant for more information.

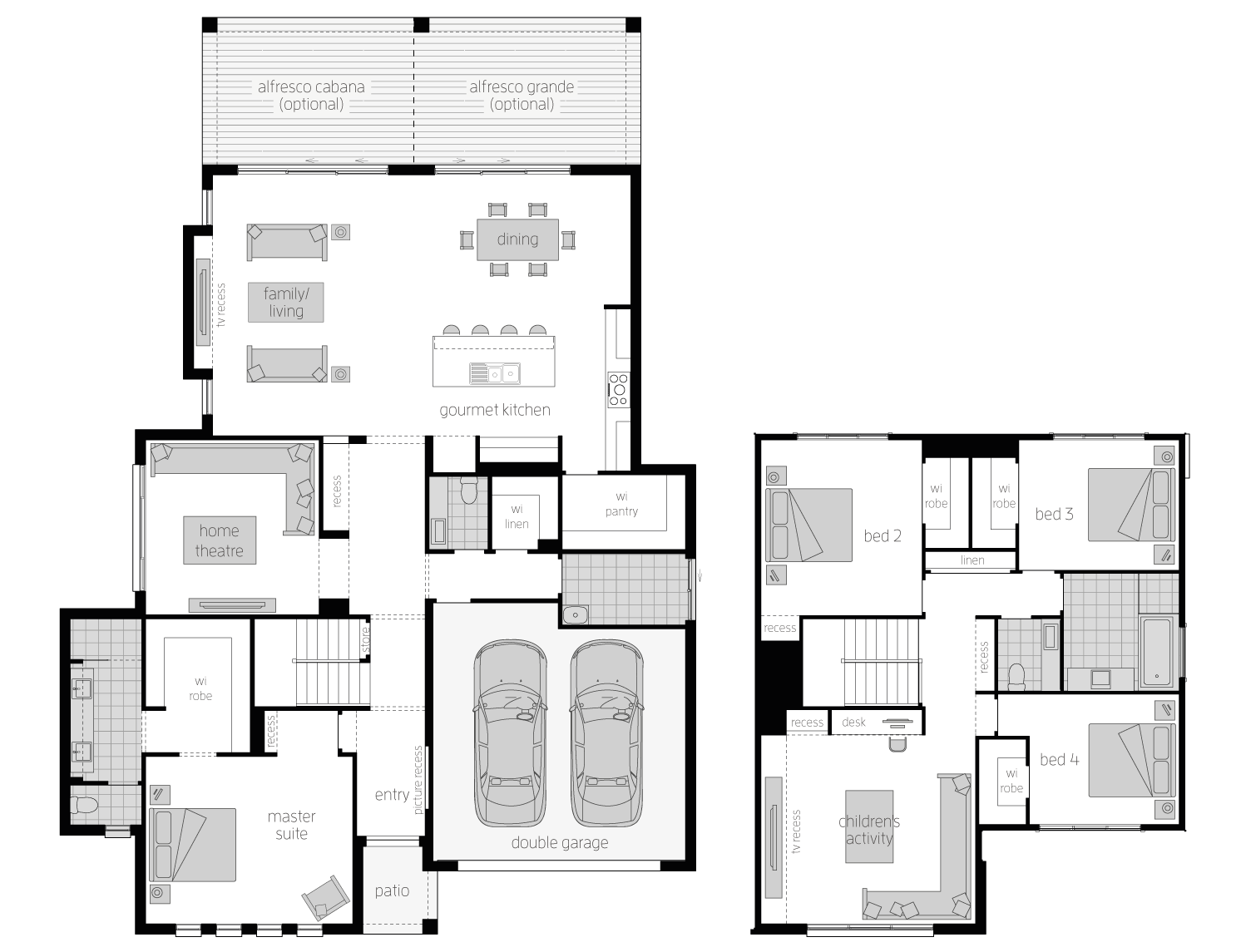

Avondale 38- Two Storey Floor Plan- McDonald Jones
Avondale 38- Two Storey Floor Plan- McDonald Jones

Design Options

4
 Bed
2.5
 Bath
2
 Car
2
 Storey
Block Width
18.00m
House Width
15.10m
House Length
18.27m

Room Dimensions

Family/Living
5.2 x 6.2 (m)
Dining
4.7 x 3.8 (m)
Master Suite
4.9 x 4.0 (m)
Bed 2
3.8 x 4.2 (m)
Bed 3
3.8 x 3.1 (m)
Bed 4
3.6 x 3.1 (m)
Home Theatre
4.1 x 4.2 (m)
Children’s Activity
5.1 x 4.5 (m)
Double Garage
6.0 x 5.5 (m)
Alfresco Cabana
5.0 x 3.5 (m)
Alfresco Grande
10.4 x 3.5 (m)

Additional Features

  • Home Theatre
  • Children's Activity
  • Study Nook
  • Powder Room
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included. The sizes of windows and external doors shown may vary from the standard plans due to the new 7 star BASIX equirements effective from October 1, 2023. Please talk to your Building and Design Consultant for more information.

Images

Enquiry

CAPTCHA
spring saver $65,000 off your new home

Request your FREE no obligation quote today!

Enquire about your favourite new home design today via the form or call one of our Building and Design Consultants on 1300 555 382 .

*Conditions apply. Note: If you're enquiring about Granny Flats, they are not offered as a stand-alone build. They are constructed at the same time as your main residence.

Virtual Tours

Inclusions

Kitchen
Internal
Bathroom
External
European designed gourmet laminated kitchen with attractive laminated bench tops with overhead cupboards and bulkhead.
Dishwasher opening with connections.
Microwave shelf with power point.
Large pantry with ventilated shelving.
Posh Solus MkII 1 ¾ bowl overmount sink.
Fridge area for 1.0m wide fridge freezer unit.
Full height ceramic tiling to Kitchen bench splash back.
Choice of quality Omega cooking appliances: Cooktop 600mm – Gas Omega OG60XA (stainless steel)/Electric Omega OC64KZ, Oven 600mm – OO651XR (stainless steel), Rangehood 900mm – Recirculating ORW9XA stainless steel canopy.
Tapware - Posh Bristol MkII Mixer Tap
Insulation - R4.1 insulation to ceilings and R2.0 to external walls excluding Garage, Patio and Alfresco (excludes insulation between ground floor and first floor for Two Storey and Split Level).
Insulation - Insulated lagging to hot and cold water pipes in ceiling space one roof ventilator and two eave vents.
Insulation - Anticon foil faced blanket (only applicable for Colorbond roof).
Ceilings - 2400mm nominal ceiling height.
Cornice - 75mm cove cornice.
Paint - Taubmans ‘Endure’ to all internal walls -2 coat system, Flat acrylic to ceiling, Gloss enamel to interior timber and internal/external doors.
Electrical - As per standard electrical plan, including smoke detectors wired direct to mains power.
Doors - Front door: standard selection from Hume Doors (Vaucluse range), Laundry door: XF3 with half glazed panel or glass sliding door( design specific), Internal: Flush Panel doors, Cushioned door stops, Glass sliding doors with key locks.
Doors - 42mm half splayed architraves and mouldings.
Door Furniture - Front entry & Laundry: Gainsborough Governor, Internal: Gainsborough 300 Contractor Series.
Clarke Eureka Plus laundry tub.
Stairs (Two Storey & Split Level only) - Painted timber stringers with medium density fibreboard (MDF) treads and risers, painted handrail and square wrought iron balusters (expansion joint in stairwell covered by painted timber trim).
Laundry tapware - Base MK2 Mixer Tap
Bedroom and robes - Double door robes with pull handle including fixed melamine shelf and hanging rail
Large selection of ceramic tiles.
1800mm high semi framed shower screens with clear toughened glass and pivot door.
Bermuda 3 function shower rail.
Framed mirror above vanity.
Mizu Drift towel rail or rings (where applicable).
Mizu Drift toilet roll holder.
Quality Decina bath.
Stylus Symphony Linked toilet suite.
Tapware: Posh Bristol MkII Mixer Tapware
180 day fixed price tender.
Timber frame/22.5° pitch roof trusses (based on wind rating N2 W33N).
Geotechnical soil classification report.
Electronic detailed contour survey.
Fixed priced piering (concrete or screw piers) to even bearing as determined by engineer in accordance to standards AS 2870-2011.
Facade - Classic facade as artist’s impression in face bricks and concrete roof tiles.
Windows - Architectural styled aluminium windows as per facade selected.
Window hardware - Energy efficient weather seals and locks to all windows.
Concrete floor - Engineer designed to M classification.
Concrete floor - Engineer designed structural steel beams (where applicable).
Cover Grade concrete finish to Patio’s and Alfresco’s (where applicable).
Bricks - Choose from an extensive range of bricks from our manufacturer Austral (Everyday Life and Old Colonial).
Roof - Colorbond roof with a range of colours available
Rheem Stellar 160lt, 5 star storage gas hot water system.
4,500L aboveground slimline Colorbond water tank on concrete slab with pump and 90mm painted downpipes.
Garage door - 4.8 wide sectional overhead garage door.
Balconies (Two Storey & Split Level Only) - External handrails (where applicable) are aluminium powder coated picket style handrail.
Balconies (Two Storey Only) - Tiled Balcony floors with slip resistant tiles from the standard range of floor tiles (excludes Split Level balconies).
Split Level Only - Deck (rear split) - Modwood Composite Deck in choice of colours.
Split Level Only - Flooring - concrete slab to ground floor, yellow tongue to mid and first floor.
Split Level Only - Piers - 90x90 steel.
Split Level Only - Deck Handrail (rear split) - Aluminium powder coated Picket Style
Tapware - Front and rear
