Palencia | McDonald Jones Homes

Uncompromised Living

This four bedroom home has been designed specifically suit a narrow 9m block and maximise space to ensure comfortable and versatile living.

Spacious living - This home perfectly separates the private and communal areas that are split over two levels of living. Every member of the family has the ability to retreat in their own space as the top level hosts four bedrooms, including a spacious master suite that is partnered by an ensuite and a private balcony.

Good morning sunshine - Waking up every morning is like a dream come true, with the wide windows of the master suite at the front welcoming in the sun and drawing in warmth to set the scene for the day ahead.

Family fun - You’ll absolutely love the tranquil family living that is presented on the ground floor, offering seamless flow between the dining, kitchen and living spaces.

Floor Plans

Palencia One

Palencia Two

Palencia Three

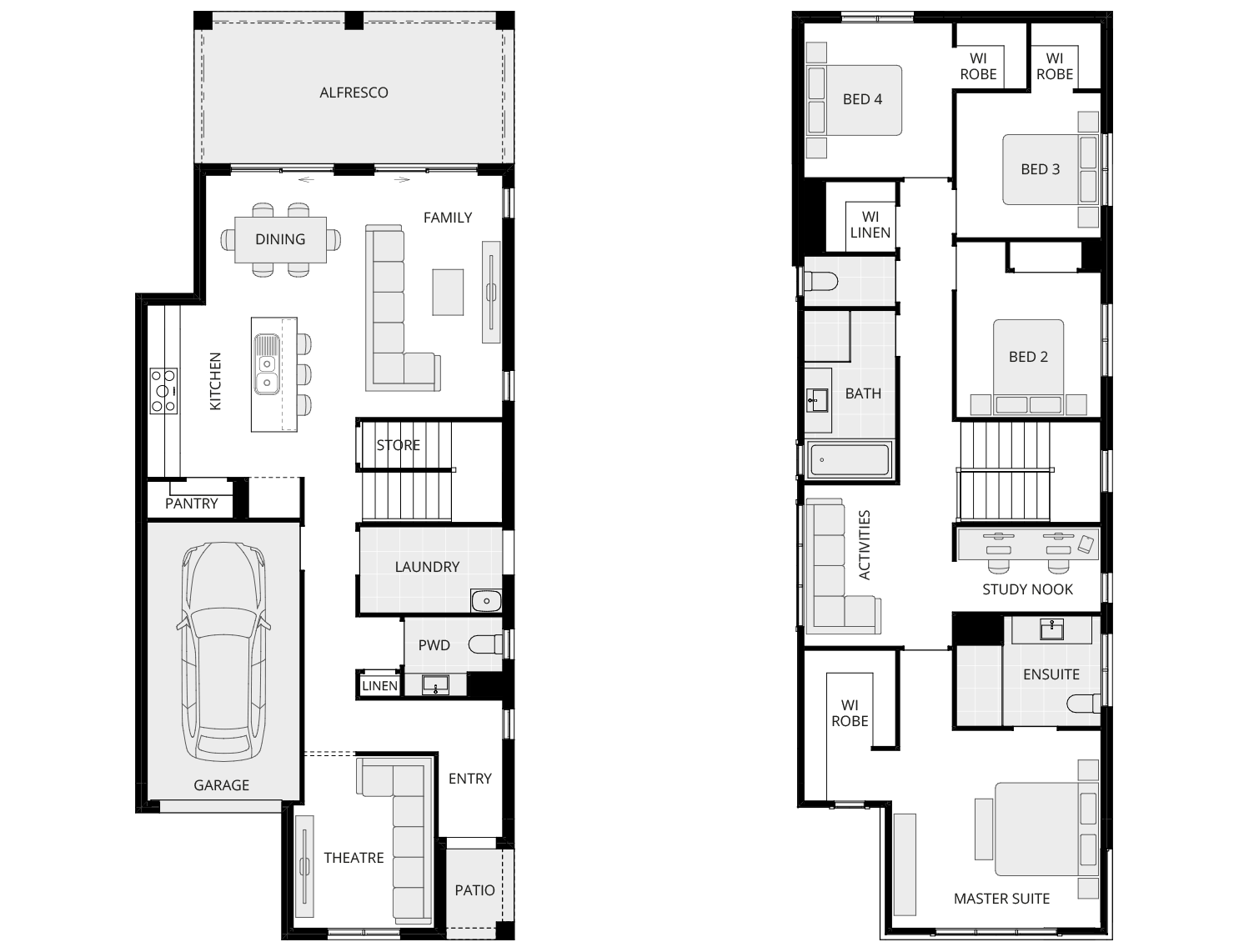

palencia-one-two-storey-standard-floorplan

palencia-one-two-storey-standard-floorplan

Design Options

Standard

4

Bed

2

Bath

1

Powder

1

Car

2

Storey

Block Width

9.00m

House Width

7.85m

House Length

16.61m

Room Dimensions

Family/Living/Dining

3.5 x 4.5 (m)

Dining

3.2 x 3.6 (m)

Master Suite

4.1 x 3.7 (m)

Bed 2

3.0 x 2.8 (m)

Bed 3

3.0 x 2.8 (m)

Bed 4

3.0 x 3.0 (m)

Activities

3.3 x 3.7 (m)

Home Theatre

2.8 x 3.2 (m)

Garage

3.1 x 5.6 (m)

Alfresco

2.9 x 3.0 (m)

Additional Features

Master suite with front elevated views
Open plan family/living, kitchen and dining
Three living areas to entertain and enjoy

Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included. The sizes of windows and external doors shown may vary from the standard plans due to the new 7 star BASIX equirements effective from October 1, 2023. Please talk to your Building and Design Consultant for more information.

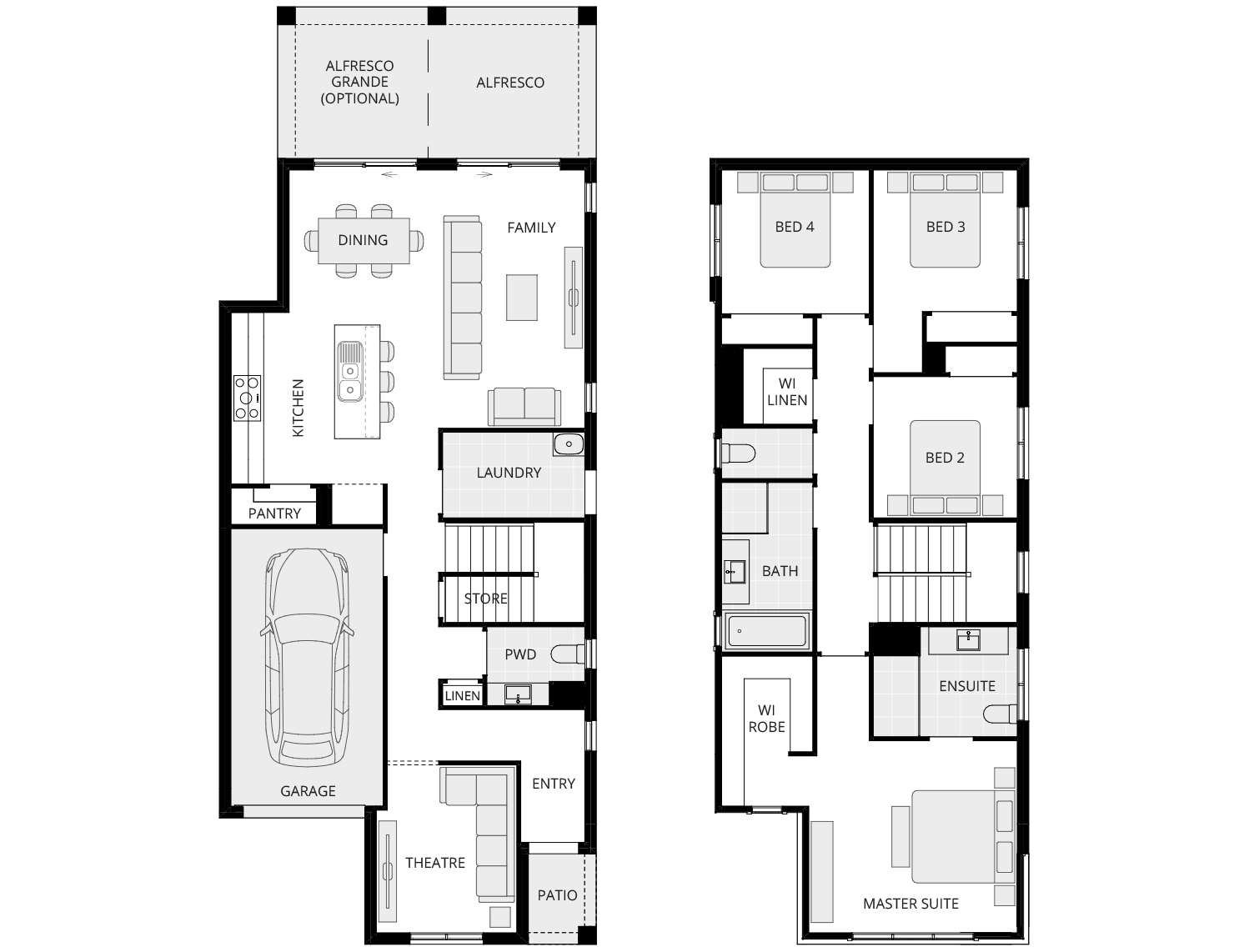

palencia-two-two-storey-standard-floorplan

palencia-two-two-storey-standard-floorplan

Design Options

Standard

4

Bed

2

Bath

1

Powder

1

Study

1

Car

2

Storey

Block Width

9.00m

House Width

7.85m

House Length

14.40m

Room Dimensions

Family/Living

3.6 x 4.1 (m)

Dining

3.5 x 2.7 (m)

Master Suite

4.1 x 3.7 (m)

Bed 2

3.0 x 2.8 (m)

Bed 3

3.0 x 2.8 (m)

Bed 4

3.0 x 2.9 (m)

Home Theatre

2.9 x 3.2 (m)

Study Nook

1.7 x 1.5 (m)

Garage

3.1 x 5.6 (m)

Alfresco

4.0 x 2.0 (m)

Additional Features

Large kitchen for the chefs
Oversized master suite with elevated views
Additional study nook

Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included. The sizes of windows and external doors shown may vary from the standard plans due to the new 7 star BASIX equirements effective from October 1, 2023. Please talk to your Building and Design Consultant for more information.

palencia-three-two-storey-standard-floorplan

palencia-three-two-storey-standard-floorplan

Design Options

Standard

4

Bed

2

Bath

1

Powder

1

Car

1

Storey

Block Width

9.00m

House Width

7.45m

House Length

17.36m

Room Dimensions

Family/Living

3.3 x 4.8 (m)

Dining

3.1 x 4.1 (m)

Master Suite

4.1 x 3.8 (m)

Bed 2

2.9 x 3.0 (m)

Bed 3

2.9 x 3.0 (m)

Bed 4

3.0 x 3.3 (m)

Activities

3.2 x 3.8 (m)

Home Theatre

2.5 x 3.4 (m)

Garage

3.0 x 5.8 (m)

Alfresco

2.9 x 3.2 (m)

Additional Features

Perfect for long, narrow blocks
Open plan family/living, kitchen and dining
Separate ensuite, family Bathroom, WC and Laundry

Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included. The sizes of windows and external doors shown may vary from the standard plans due to the new 7 star BASIX equirements effective from October 1, 2023. Please talk to your Building and Design Consultant for more information.

Facades

Facades

Palencia Two Storey Beaufort New Design

Beaufort Facade

Palencia Two Storey Classic New Design

Classic Facade

Palencia Two Storey Estell New Design

Estell Facade

Palencia Two Storey Harrow New Design

Harrow Facade

Palencia Two Storey Vincent New Design

Vincent Facade

mjh-now-beaufort-two-storey

mjh-now-classic-two-storey

mjh-now-palencia-harrow-two-storey

mjh-now-palencia-vincent-two-storey

Note: Images of facades shown are a guide only. Material finishes, dimensions and colours shown are purely an expression of the artist and subject to change depending on availability and design updates. Please refer to our current price list and specifications for façade finishes allowed in published price.

Enquiry

First Name

Last Name

Email

Phone

Select your region

Suburb you wish to build in

Do you have land?

Preferred floorplan version

Comments

Please send me pricing and upgrade information for this home.

I'd like to talk to MyChoice Home Loans about finance options for my home.

Yes, send me occasional offers and news via email.

CAPTCHA

spring saver $65,000 off your new home

Request your FREE no obligation quote today!

Enquire about your favourite new home design today via the form or call one of our Building and Design Consultants on 1300 555 382 .

*Conditions apply. Note: If you're enquiring about Granny Flats, they are not offered as a stand-alone build. They are constructed at the same time as your main residence.

Inclusions

Kitchen

Internal

Bathroom

External

ALREADY YOURS INCLUSIONS

Laminated benchtops including butler's pantry if applicable

1¾ Base Mk3 sink

600mm Haier appliance package with under bench oven, rangehood (incl ducting) and electric or 5 burner gas cooktop

Mizu Drift square sink mixer in chrome

Pantry with white melamine shelves

Hettich Sensys soft close hinges to cupboards

Overhead cupboards with bulkhead included

Soft close drawers

ASK ABOUT OUR ADDED LUXURY PACKAGE INCLUSIONS

ALREADY YOURS INCLUSIONS

Taubmans ‘Endure’ 3-coat system to all internal walls

Clipsal switches and GPO throughout

2040mm Hume internal doors with choice of Gainsborough door handles

Wardrobe double doors where shown with melamine shelves

90mm classic cove cornice

67mm half splayed architraves and mouldings

2400mm nominal ceiling height

Electrical as per the standard electrical plan.

Smoke Detectors as per standard electrical plan wired direct to mains power.

Painted timber handrail and stringers, painted timber posts and round black metal balusters with medium-density fibreboard (MDF) treads and risers suitable for carpet on two storey homes

ASK ABOUT OUR ADDED LUXURY PACKAGE INCLUSIONS

ALREADY YOURS INCLUSIONS

Base acrylic bath with overflow

Roca Debba rimless close coupled toilet suite

Semi-frameless 2000mm high shower screen

Mizu Drift chrome tapware and fixtures

Luxury Polytec or Laminex matt finish to cupboards

Posh Bristol 7 function rail shower

450mm Roca The Gap semi inset basin

Your choice 300x300 or 300x450 floor and wall tiling to all wet areas

European designed laminated vanities with attractive laminated benchtops

Vanity width polished edge frameless mirror, on 300mm high tiled splashback

ASK ABOUT OUR ADDED LUXURY PACKAGE INCLUSIONS

ALREADY YOURS INCLUSIONS

365 day fixed price tender

Supaloc steel frame with Bluescope TRUECORE 50 year structural warranty*

R4.1 insulation to ceilings and R2.0 insulation to external walls including internal wall of garage

Classic facade included

Concrete slab engineered designed to M classification

Your choice of Austral Bricks across Wilderness or Everyday ranges

Superior Kordon termite barrier protection including installation to all door openings and garage

Colorbond roof and sectional overhead garage

Hume Vaucluse entry door

Architectural styled aluminum windows as per facade selected

Modline rain water tank up to 4,990litre to external wall

Rheem 26 litre continuous flow hot water unit

Sarking to underside of your roof

McDonald Jones 25 year Transferable Structural Guarantee

ASK ABOUT OUR ADDED LUXURY PACKAGE INCLUSIONS
