Impressive open plan living

The Springvale relishes in times best spent together with an open plan living area that sprawls from space to space and private sleep sanctuaries separated to the side.

For the entertainer - The gourmet kitchen lives at the heart of the home looking out toe the stylish alfresco. The family/living to one side and the dining and theatre to the other creates the ultimate modern family home with endless zones for enjoyment.

Private retreat - It’s next to the Springvale’s entrance that you’ll find the master suite, fitted with a luxurious ensuite with dual sinks and a walk-in robe. The three additional bedrooms, the family bathroom and a study nook are separated offering great privacy for all.

Stylish storage - Contemporary living requires storage and the Springvale offers versatile options such as a walk-in Linen, walk-in pantry and double garage, making life a little more easy and enjoyable.

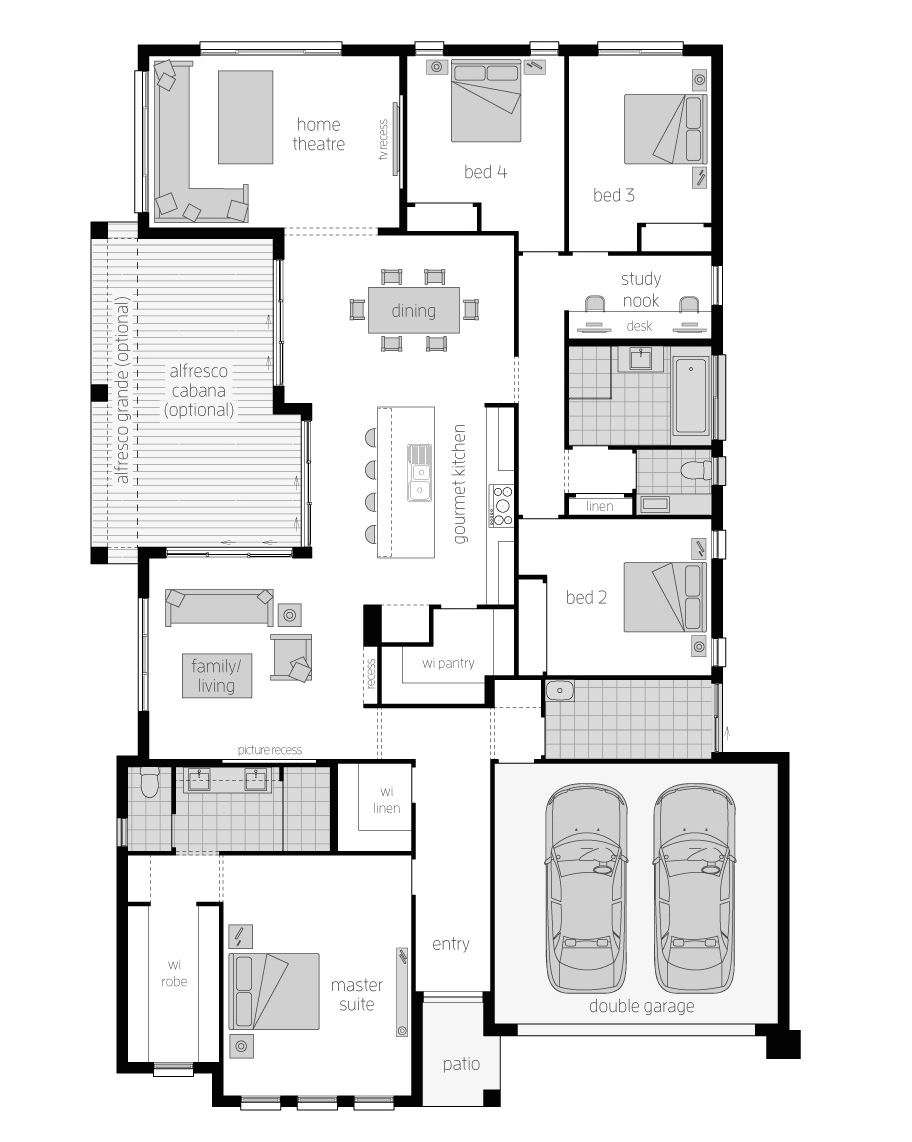

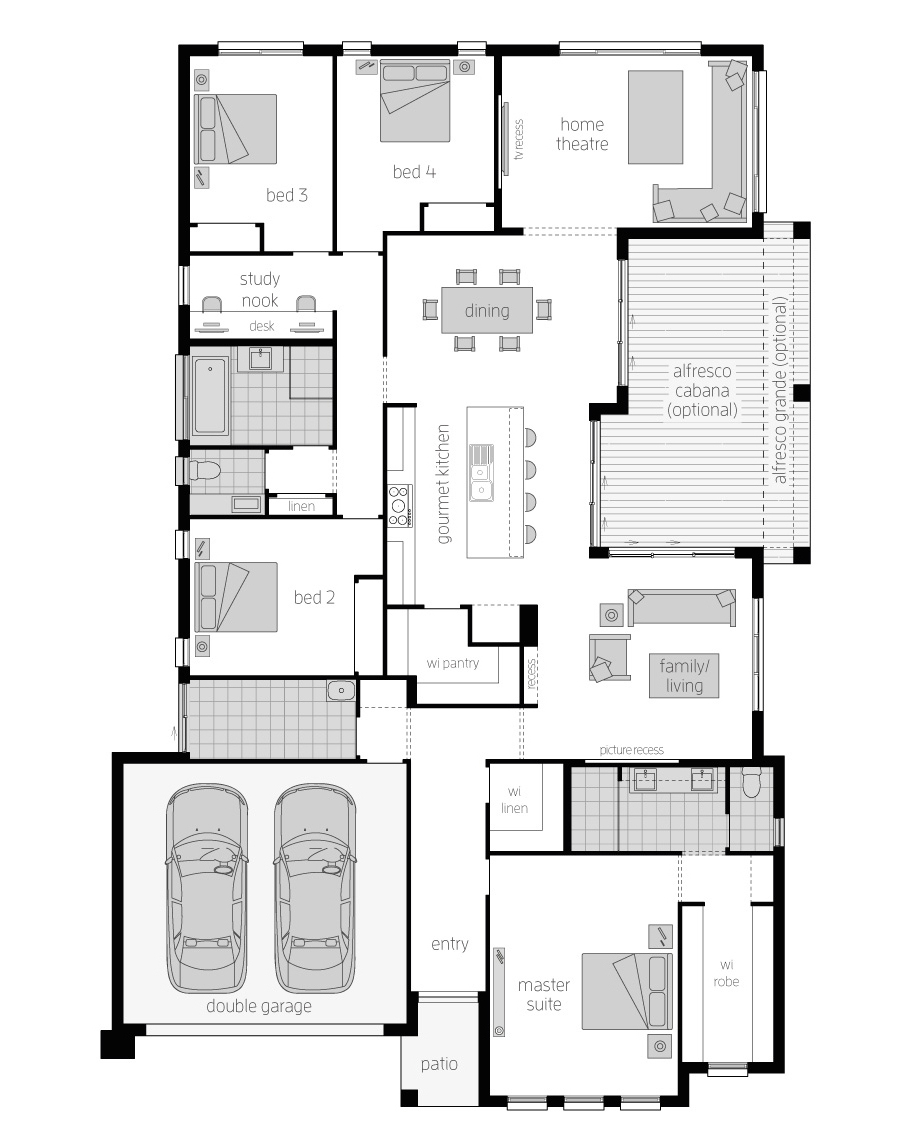

Floor Plans

Springvale

Springvale Executive

Design Options

Standard

Bed

Bath

Car

Storey

Block Width

16.00m

House Width

14.25m

House Length

22.50m

Room Dimensions

Family/Living

4.6 x 4.3 (m)

Dining

4.9 x 3.6 (m)

Master Suite

4.0 x 5.1 (m)

Bed 2

4.1 x 3.3 (m)

Bed 3

3.0 x 4.2 (m)

Bed 4

3.4 x 3.7 (m)

Home Theatre

5.3 x 3.7 (m)

Study Nook

3.0 x 1.8 (m)

Double Garage

6.0 x 5.6 (m)

Alfresco Cabana

3.5 x 6.5 (m)

Alfresco Grande

4.5 x 7.2 (m)

Additional Features

Home Theatre/Activity Room
Study Nook

Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included. The sizes of windows and external doors shown may vary from the standard plans due to the new 7 star BASIX equirements effective from October 1, 2023. Please talk to your Building and Design Consultant for more information.

Design Options

Standard

Bed

Bath

Car

Storey

Block Width

16.00m

House Width

13.91m

House Length

22.50m

Room Dimensions

Family/Living

5.3 x 3.7 (m)

Dining

4.3 x 3.5 (m)

Master Suite

3.8 x 4.9 (m)

Bed 2

3.6 x 3.0 (m)

Bed 3

3.1 x 3.2 (m)

Bed 4

3.2 x 3.2 (m)

Home Theatre

4.2 x 3.6 (m)

Garden Room

4.3 x 3.2 (m)

Double Garage

6.0 x 5.5 (m)

Alfresco Cabana

2.7 x 7.8 (m)

Alfresco Grande

4.2 x 8.5 (m)

Additional Features

Home Theatre
Garden Room

Images

Images Facades

Kitchen & Dining - Springvale

Living Room - Springvale

Dining Room - Springvale

Kitchen - Springvale

Living Room - Springvale

Home Theatre/Activity Room - Springvale

Master Bedroom - Springvale

Bedroom - Springvale

Study Nook - Springvale

Alfresco - Springvale

Facades

Taylor Facade

Hampton B Facade

Emerson Facade

Accent Two Facade

Classic Facade

Traditional Facade

Note: Images of facades shown are a guide only. Material finishes, dimensions and colours shown are purely an expression of the artist and subject to change depending on availability and design updates. Please refer to our current price list and specifications for façade finishes allowed in published price.

Enquiry

First Name

Last Name

Phone

Select your region

Suburb you wish to build in

Do you have land?

Preferred floorplan version

Comments

Please send me pricing and upgrade information for this home.

I'd like to talk to MyChoice Home Loans about finance options for my home.

Yes, send me occasional offers and news via email.

CAPTCHA

Request your FREE no obligation quote today!

Enquire about your favourite new home design today via the form or call one of our Building and Design Consultants on 1300 555 382 .

*Conditions apply. Note: If you're enquiring about Granny Flats, they are not offered as a stand-alone build. They are constructed at the same time as your main residence.

Inclusions

Kitchen

Internal

Bathroom

External

European designed gourmet laminated kitchen with attractive laminated bench tops with overhead cupboards and bulkhead.

Dishwasher opening with connections.

Microwave shelf with power point.

Large pantry with ventilated shelving.

Posh Solus MkII 1 ¾ bowl overmount sink.

Fridge area for 1.0m wide fridge freezer unit.

Full height ceramic tiling to Kitchen bench splash back.

Choice of quality Omega cooking appliances: Cooktop 600mm – Gas Omega OG60XA (stainless steel)/Electric Omega OC64KZ, Oven 600mm – OO651XR (stainless steel), Rangehood 900mm – Recirculating ORW9XA stainless steel canopy.

Tapware - Posh Bristol MkII Mixer Tap

Insulation - R4.1 insulation to ceilings and R2.0 to external walls excluding Garage, Patio and Alfresco (excludes insulation between ground floor and first floor for Two Storey and Split Level).

Insulation - Insulated lagging to hot and cold water pipes in ceiling space one roof ventilator and two eave vents.

Insulation - Anticon foil faced blanket (only applicable for Colorbond roof).

Ceilings - 2400mm nominal ceiling height.

Cornice - 75mm cove cornice.

Paint - Taubmans ‘Endure’ to all internal walls -2 coat system, Flat acrylic to ceiling, Gloss enamel to interior timber and internal/external doors.

Electrical - As per standard electrical plan, including smoke detectors wired direct to mains power.

Doors - Front door: standard selection from Hume Doors (Vaucluse range), Laundry door: XF3 with half glazed panel or glass sliding door( design specific), Internal: Flush Panel doors, Cushioned door stops, Glass sliding doors with key locks.

Doors - 42mm half splayed architraves and mouldings.

Door Furniture - Front entry & Laundry: Gainsborough Governor, Internal: Gainsborough 300 Contractor Series.

Clarke Eureka Plus laundry tub.

Stairs (Two Storey & Split Level only) - Painted timber stringers with medium density fibreboard (MDF) treads and risers, painted handrail and square wrought iron balusters (expansion joint in stairwell covered by painted timber trim).

Laundry tapware - Base MK2 Mixer Tap

Bedroom and robes - Double door robes with pull handle including fixed melamine shelf and hanging rail

Large selection of ceramic tiles.

1800mm high semi framed shower screens with clear toughened glass and pivot door.

Bermuda 3 function shower rail.

Framed mirror above vanity.

Mizu Drift towel rail or rings (where applicable).

Mizu Drift toilet roll holder.

Quality Decina bath.

Stylus Symphony Linked toilet suite.

Tapware: Posh Bristol MkII Mixer Tapware

180 day fixed price tender.

Timber frame/22.5° pitch roof trusses (based on wind rating N2 W33N).

Geotechnical soil classification report.

Electronic detailed contour survey.

Fixed priced piering (concrete or screw piers) to even bearing as determined by engineer in accordance to standards AS 2870-2011.

Facade - Classic facade as artist’s impression in face bricks and concrete roof tiles.

Windows - Architectural styled aluminium windows as per facade selected.

Window hardware - Energy efficient weather seals and locks to all windows.

Concrete floor - Engineer designed to M classification.

Concrete floor - Engineer designed structural steel beams (where applicable).

Cover Grade concrete finish to Patio’s and Alfresco’s (where applicable).

Bricks - Choose from an extensive range of bricks from our manufacturer Austral (Everyday Life and Old Colonial).

Roof - Colorbond roof with a range of colours available

Rheem Stellar 160lt, 5 star storage gas hot water system.

4,500L aboveground slimline Colorbond water tank on concrete slab with pump and 90mm painted downpipes.

Garage door - 4.8 wide sectional overhead garage door.

Balconies (Two Storey & Split Level Only) - External handrails (where applicable) are aluminium powder coated picket style handrail.

Balconies (Two Storey Only) - Tiled Balcony floors with slip resistant tiles from the standard range of floor tiles (excludes Split Level balconies).

Split Level Only - Deck (rear split) - Modwood Composite Deck in choice of colours.

Split Level Only - Flooring - concrete slab to ground floor, yellow tongue to mid and first floor.

Split Level Only - Piers - 90x90 steel.

Split Level Only - Deck Handrail (rear split) - Aluminium powder coated Picket Style

Tapware - Front and rear
